您當前的位置：首頁產品中心Dwyer 差壓變送器 WWDP系列
Selectable Ranges of Uni-Directional or Bi-Directional, Selectable Outputs

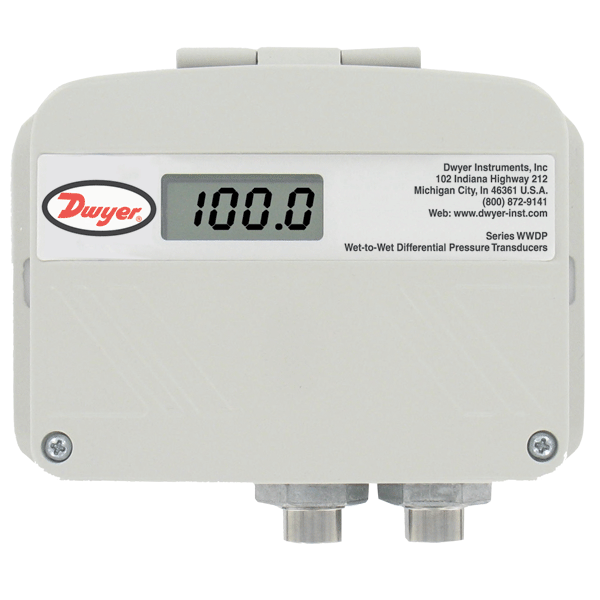

WWDP系列濕-濕差壓變送器提供了一切在一個包，有30場可選擇的變化，只有3個型號。該WWDP提供field可選擇的單向和雙向壓力范圍，可配置0-5,1-5,0-10 VDC，和4至20 mA輸出。它還提供自動置零功能。如果設備安裝不當，或者只是簡單地更換了發射器，則現場可選端口交換功能可以省去昂貴的水管更換。一個可選的LCD顯示是可用的實時指示線路和壓差。全鑄鋁外殼額定NEMA 4 (IP66)。這些特點使WWDP變送器成為測量各種液體和氣體的流量，過濾器的壓降，液位或加壓容器的測量，以及在能源管理和過程控制系統中使用的理想儀器。
校準選項可在附件。
應用及案例
? Monitor differential pressure of a chiller
? Filter monitoring
? Liquid level
? Pressure vessels
? Process control
? Energy management
產品特色
? Versatile device for liquid or gas supports designs requiring more precise measurements in support of application
? Field selectable port swap eliminates costly re-plumbing if unit is re-installed or replaced
? Uni-directional and bi-directional pressure selection with configurable output provides a single device that can meet broad application needs without having to specify multiple devices
? Optional LCD display provides local status to identify operational conditions
? NEMA 4 rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
